Details

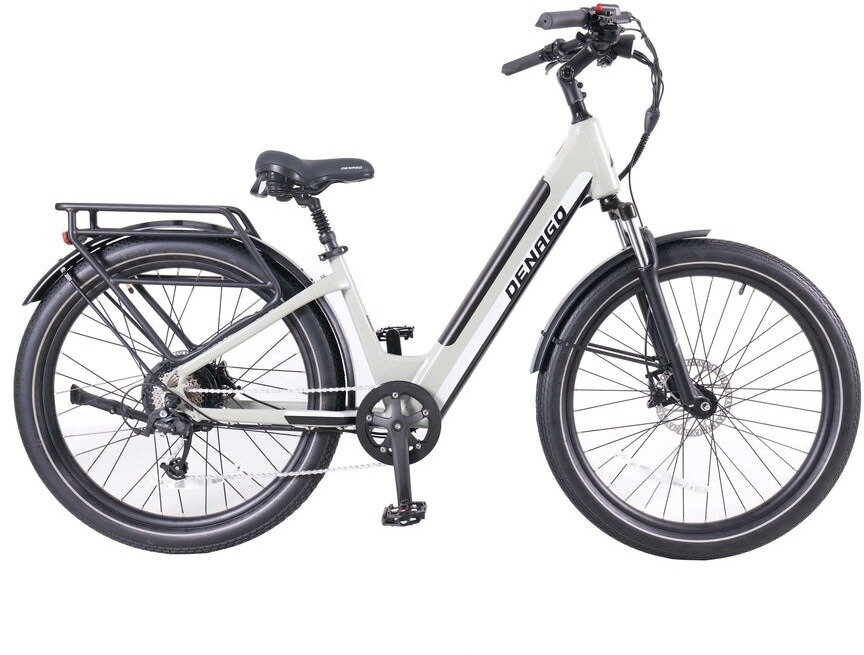

The Denago Commute Model 1 is an urban eBike with a step-thru frame with a low standover height—easy to mount and dismount for shorter riders or those with poor flexibility or injuries. Commute Model 1 is full-featured with a suspension fork and seatpost, integrated headlight, plus included fenders, rear rack, and kickstand. Stealthy, sleek battery integrated with the down tube.
Commute Model 1 was named "best new commuter eBike" by the editors of Bicycling.com and appears on their list of "18 best electric bikes you can buy right now."
eBike Features:
An urban eBike that can replace your car
Class III eBike; ride up to 28 MPH on pedal assist and 20 MPH on throttle alone.
Sleek, hidden battery
652.8 Wh lithium-ion battery integrates in the down tube for a stealthy look, and locks with a key for additional security. Built with premium LG cells.
Integrated headlight
Integrated headlight is powered by the eBike battery and controlled from the handlebar remote. There's also a rack-mounted rear red reflector - add 3 AAA battery to turn it into a powered taillight for night rides.
3 Amp fast charger
Recharge 50% faster than competing eBikes - that means you can get a full charge for the evening commute during the work day.
Digital LCD display with PIN lock
Monitor your speed, distance, battery charge, and other data on the high-resolution handlebar display. Set an optional PIN code for additional security.
500 watt hub motor
Plenty of torque for climbing hills, even when you're carrying a laptop or groceries.
45+ mile range
Enough for commuting to work or school without needing to charge during the day. Range varies based on conditions and usage patterns.
Denago recommends:
- Size S/M for riders 4'11" - 5'8"
- Size L/XL for riders 5'8" - 6'5"
Specs
Pedals | Platform, aluminum alloy, 9/16” with reflectors |
---|---|
Motor | Shengyi rear hub motor, 48V, 500W, 50 Nm torque rating |
Battery | 48V, 13.6Ah, 652.8Wh, Fully-integrated style, LG cells |
Charger | Multi-voltage 110-240V, 3A Fast Charger with USA plug |
Controller/Display | Denago LCD with speed, motor power, trip distance, odometer, trip time, battery charge level, and walk mode functions, plus PIN lock security feature |
Hubs | Front - 6 bolt disc, nutted, 36 holes; Rear - 6 bolt disc, Shengyi DGW22, nutted, 36 holes |
Rims | Aluminum Alloy, 36 holes, 27.5” |
Stem | Aluminum alloy w/adjustable angle, 31.8mm clamp, 1 1/8” threadless |
Chain | KMC Z-Series, 8 speed, 3/32” |
Frame | 6061-T6 Aluminum Alloy, Step-thru style |
Tires | Denago P-1195, 27.5 x 2.6", eBike rated, puncture resistant, reflective sidewalls |
Rotors | 180mm, 6 bolt type |
Saddle | Comfort padded, black with white Denago logo |
Spokes | 36 Black ED13 gauge spokes front, 36 12 gauge spokes rear |
Headset | 1 1/8”, sealed, threadless |
Crankset | Aluminum alloy, 170mm, 42 tooth chainring, built-in cover protects pant legs from the chain |
Seatpost | Zoom suspension, 30.4mm diameter, 350mm length |
Shifters | Microshift 8 speed, Rapidfire Plus |
Handlebars | Zoom aluminum alloy, 31.8mm diameter, 660mm long |
Tape/Grips | Black rubber, lock-on style |
Brake Levers | Hydraulic disc with motor cut-off |
Bottom Bracket | Sealed, square taper, 138mm, English thread |
Rear Derailleur | Microshift, 8 speed |
Accessories & Extras | Kickstand: included |
Cassette/Freewheel | 8 speed, 11-32 teeth |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Bone / Small/Medium | 810066084445 | DE-E13-BONE-S/M | |
Light Blue / Small/Medium | 810066086630 | DE-E13-LtBLUE-S/M | DE-E13-LTBLUE-S/M |
Light Blue / Large/X-Large | 810066086647 | DE-E13-LtBLUE-L/XL | DE-E13-LTBLUE-L/XL |
Bone / Large/X-Large | 810066084452 | DE-E13-BONE-L/XL |
